Product Details

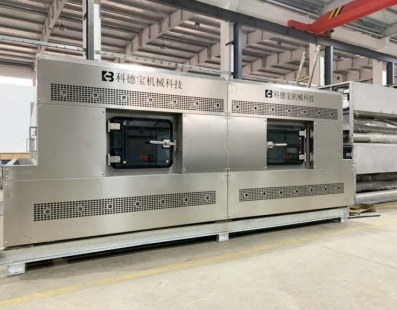

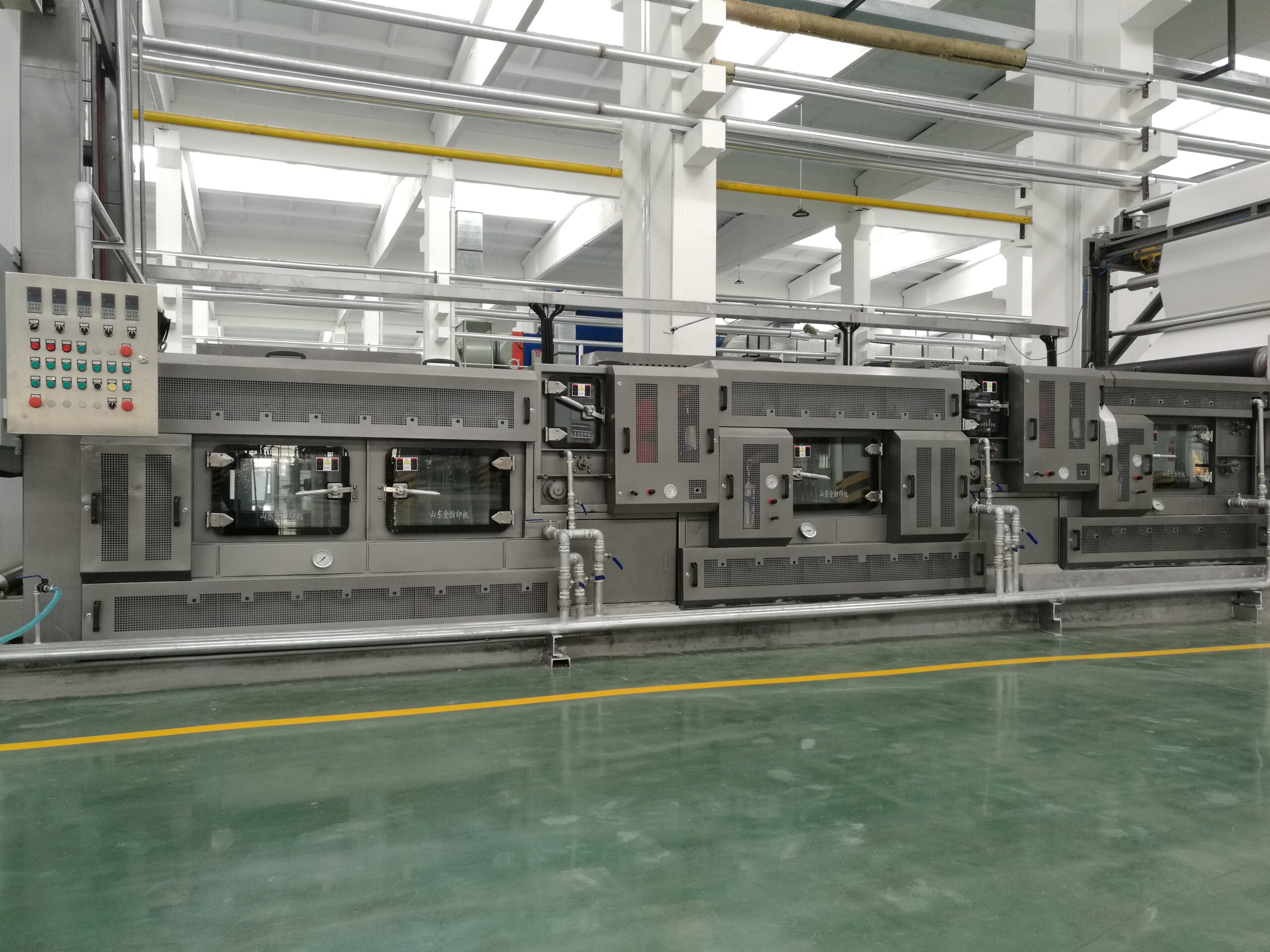

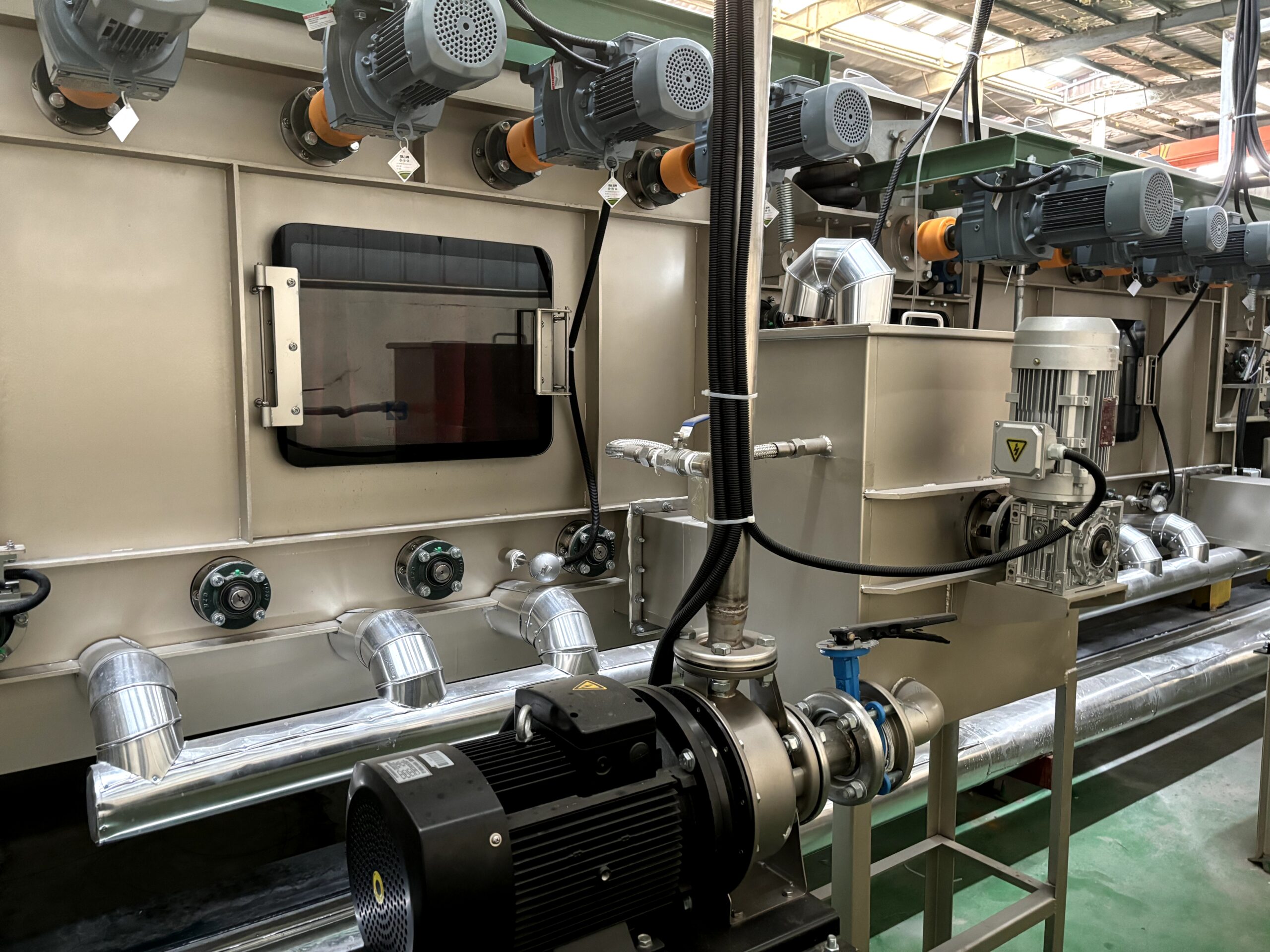

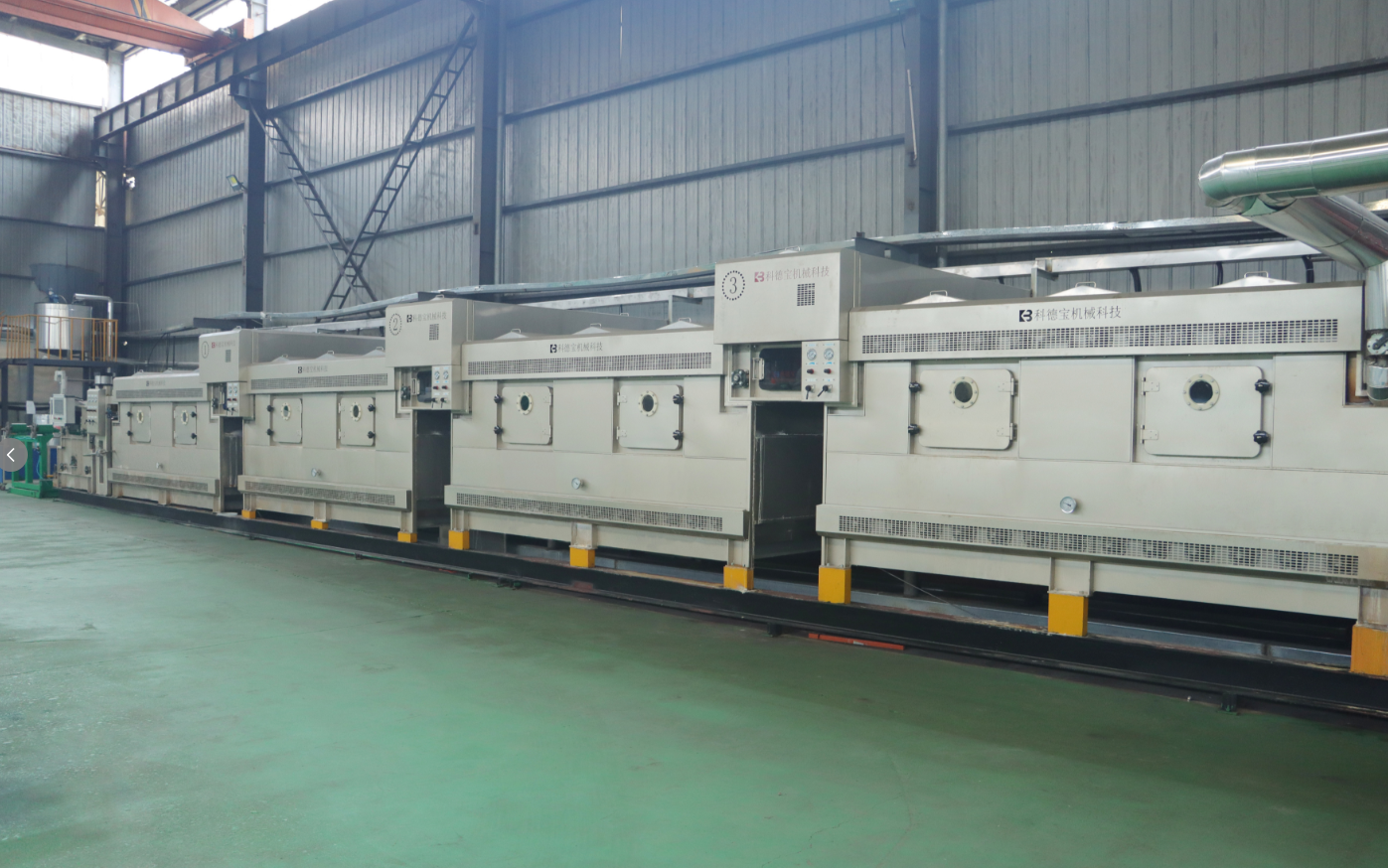

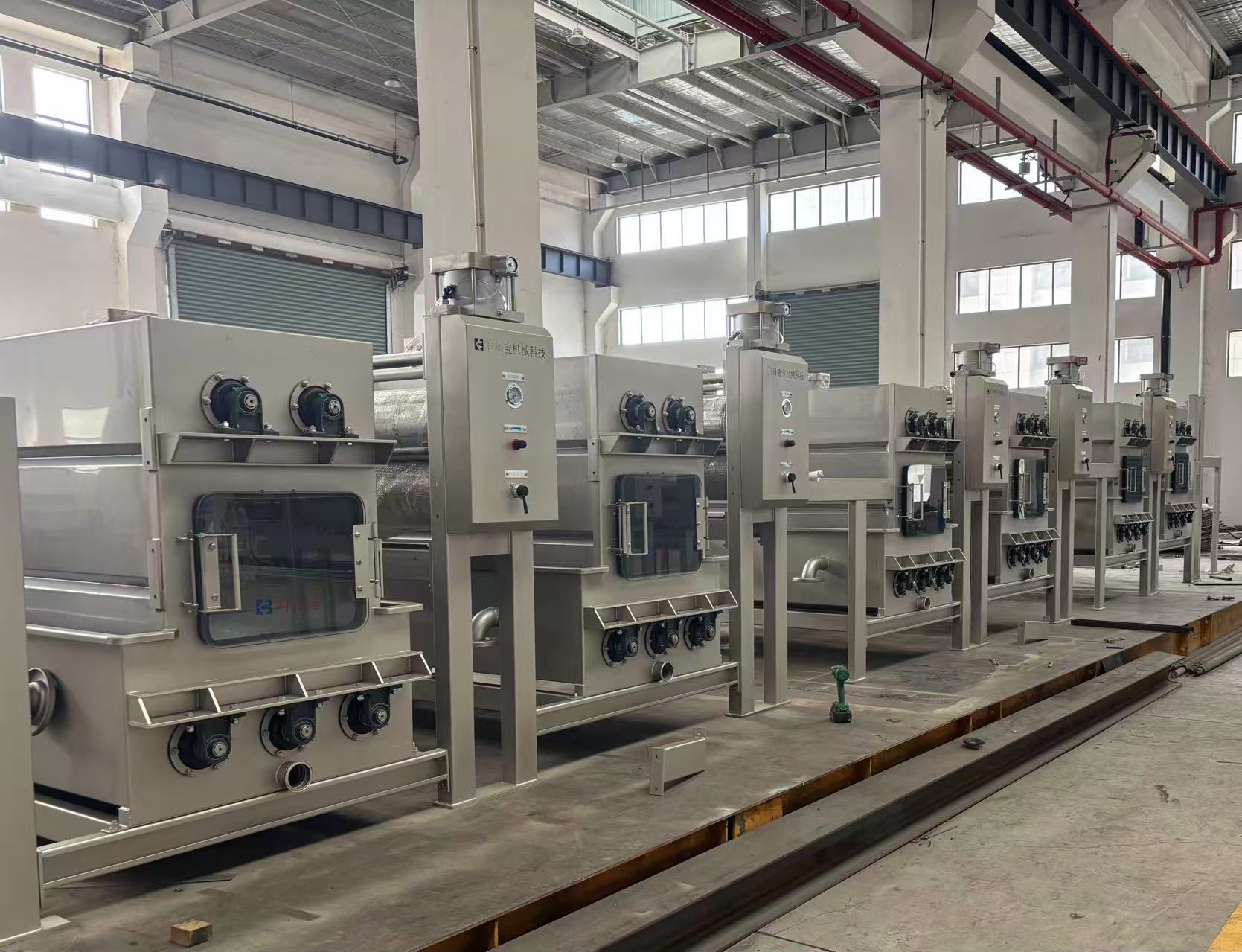

OPEN WIDTH POLYESTER WEIGHT REDUCTION LINE

KODE MACHINE ADVANTAGE

  • Low tension
  • Powerful and efficient washing, high washing efficiency, savingwater and steam
  • Multiple options: Single layer ,Double layer , four layer (decided to the fabric )
  • Can modify the process as Different fabrics , different demand

Technical Specifications

  1. Nominal width: 1400–3600 mm
  2. Mechanical vehicle speed: 10-150 meters/minute
  3. Modular structure, combined optimally according to product and process requirements
  4. Car type: When facing the input cloth transmission, if operated by hand, it is a hand car
  5. Dragging method: AC motor frequency conversion speed regulation, PLC programmable control, large speedometer display, cantilever-type operation panel

APPLICATION

Widely used for desizing, refining, degreasing.shrinkingwashing, alkali reduction washing ofpolyester blend fabrics such as woolen silk,chiffon, polyester peach skin, pongee, polyester taffeta, memory cloth, nylon, etc.

Grey polyester contains up to 9% size,3.5%oligomers and 1.2% spinning oil. To avoidstains in dyeing and printing the size has toremoved completely,oligomer contentshouldbe below 1% and spinning oil below 0.2%.

Polyester weight reduction or PWR is a process that strongly changes the properties of polyesterfabrics. When exposed to NaOH at temperature over 100°C polyester is beingsaponified whichhas the following effects:

  • Filament diameter decreases
  • Filament surface becomes irregular
  • Hydrophilic groups are created
  • Water soluble reaction products are created

For the fabric which has the following benefits:

  • A soft,silk-like hand
  • A unique drape
  • Reduction ofsynthetic shine

Improved depth ofcolourin dyeing and printing:

  • Hydrophility and breathing
  • Reduced electrostatic effects
